ALPHAFLOOR® is a quality and cost-effective solution for builders looking for high performance structural floors that contribute towards meeting NCC 2022 and the higher NatHERS / BASIX 7 star rating requirements. ALPHAFLOOR is manufactured by Australian company XCEM in the Southern Highlands of NSW and is ISO 9001 accredited.

XCEM Alphafloor Structural Flooring

Solid concrete floor panels

ALPHAFLOOR® is a solid concrete floor system offering a high performance structural flooring solution at a reasonable price.

ALPHAFLOOR is an ideal second storey substrate if you are looking for a concrete slab feel underfoot and minimal noise transfer. It is also suitable for construction on piers and multi-level developments.

Ask us how ALPHAFLOOR has made a significant contribution towards meeting 7 stars and helped other builders save money in the process.

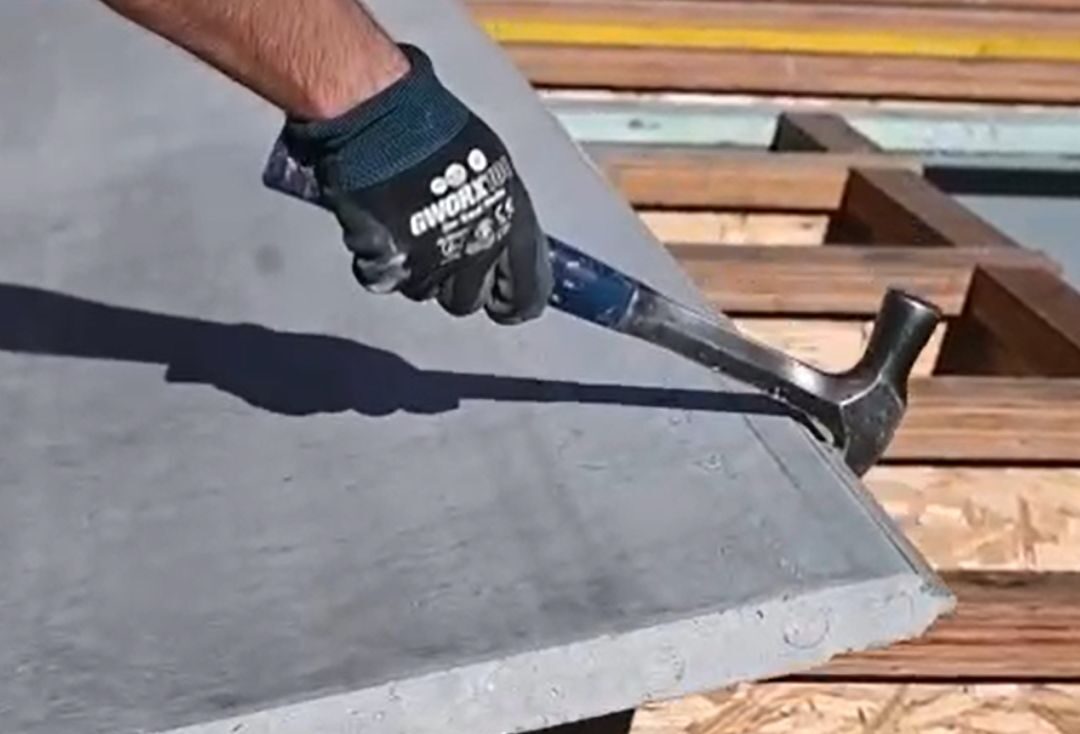

Alphafloor Placement

Reduce costs while achieving 7 stars

The high thermal rating of ALPHAFLOOR makes a significant contribution towards meeting 7 stars under NatHERS / BASIX requirements as it allows you to save on expensive upgrades in other areas of your build.

Strong and solid concrete

At 25MPa, ALPHAFLOOR panels make a super strong structural floor solution with that feels and sounds like a solid concrete floor underfoot.

Thin 35mm and lightweight

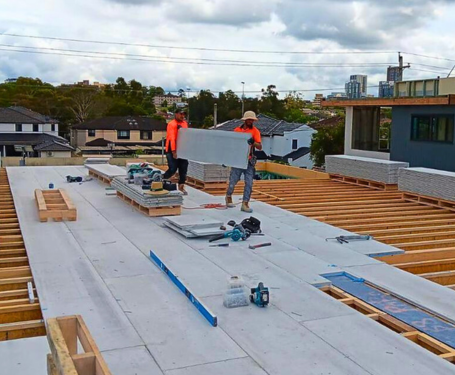

Each solid concrete panel measures 600 x 2700mm, is only 35mm thick and only weighs 35kg/m2 making it easy to move and install on site.

Durable and weather resistant

Can be left exposed to the elements indefinitely without the worry of being damaged. Does not need to be sanded prior to the laying of carpet or tiles and cut edges do not need to be sealed.

Minimal noise transfer

Rated RW37, ALPHAFLOOR has the highest acoustic performance in the market which means there is minimal noise transfer between floors.

Eliminate squeaking and bouncing

As ALPHAFLOOR acts like a solid concrete floor a superior result is achieved with no squeaking and bouncing of floors.

Crystalline silica free

No crystalline silica is present which eliminates the risk of silicosis through inhalation of dust.

Australian made and owned

ALPHAFLOOR is an innovation of Australian company XCEM and manufactured in New South Wales.

CASE STUDY

7 stars with $3,600+ saving

Project: New home in North Richmond, NSW, by GJ Gardner Sydney West

Before:

When using particle board flooring achieve 7 stars with the following:

  • All windows and doors with double glazing and low-e (Sunergy) to low SHGC (excluding entry door)
  • Ceiling insulation to R6.0 (excluding garage)
  • External wall insulation R2.7 (excluding garage)
  • R2.0 insulation throughout the bathroom and laundry internal walls
  • R4.0 insulation throughout the framed suspended floor
  • Outdoor covering to the north-facing kitchen and dining windows
  • 1200mm ceiling fans in the study, dining, media, activity and bedrooms.

After:

Changed to 35mm XCEM ALPHAFLOOR with the following:

  • All windows standard double glazed
  • Laundry and dining glazed doors to single glazing low-e, all other doors standard single glazing
  • Ceiling insulation to R6.0 (excluding garage)
  • R2.0 insulation throughout the bathroom and laundry internal walls
  • R4.0 insulation throughout the framed suspended floor1200mm ceiling fan to the dining, media, activity and bedrooms.

COST SAVING: $3686 + GST

Want to learn more? Get in touch today
